Ventilation Source
Gray Scale
High Contrast

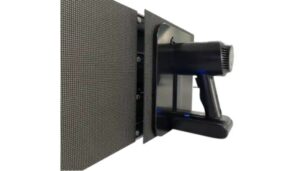

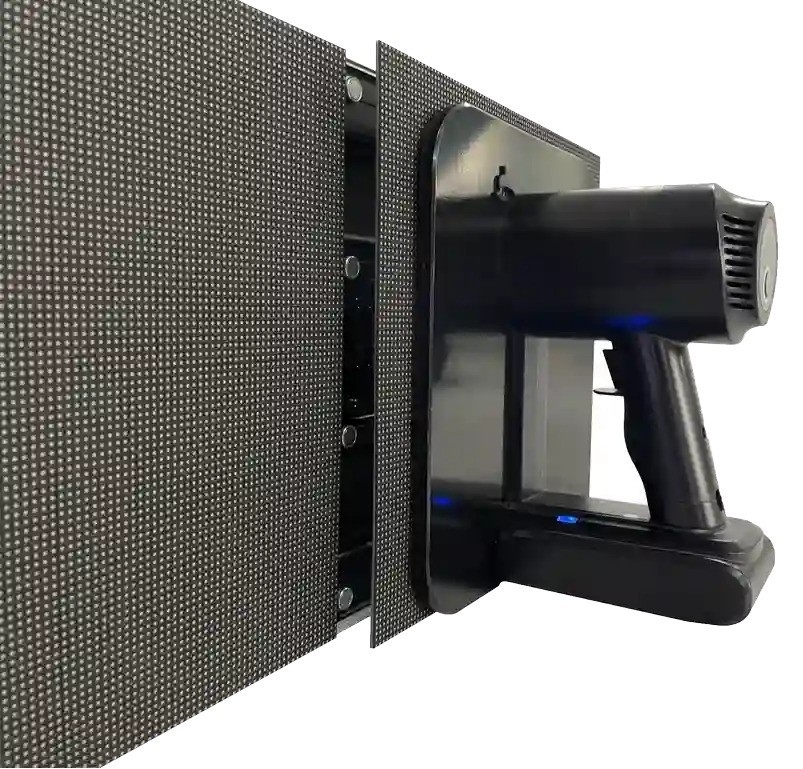

Fast Installation
Clear Viewing Angle
Continuous Operation

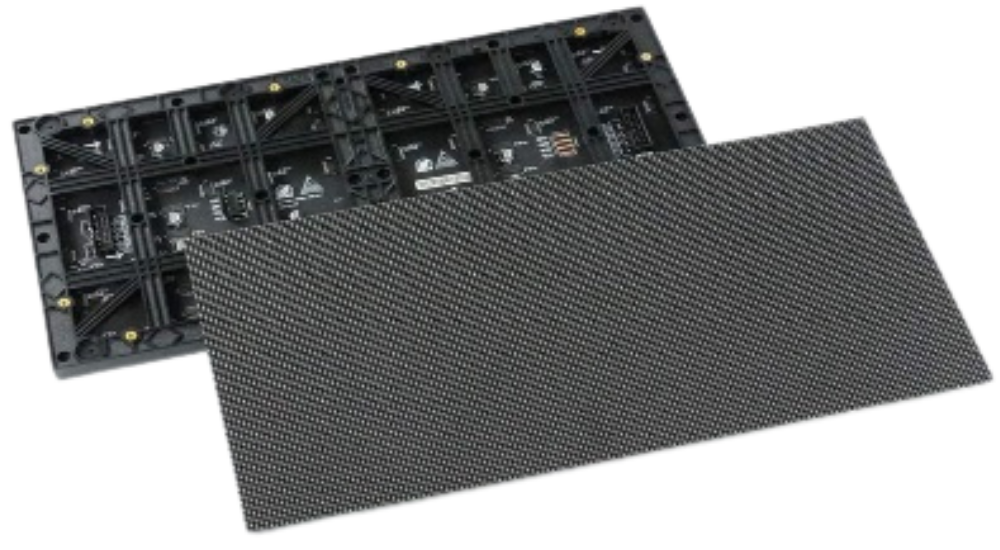

High-Quality LED Screen Module
Designed using high-quality LED chips such as Kinglight, San’an, Hongseng, and Nationstar to ensure excellent color consistency

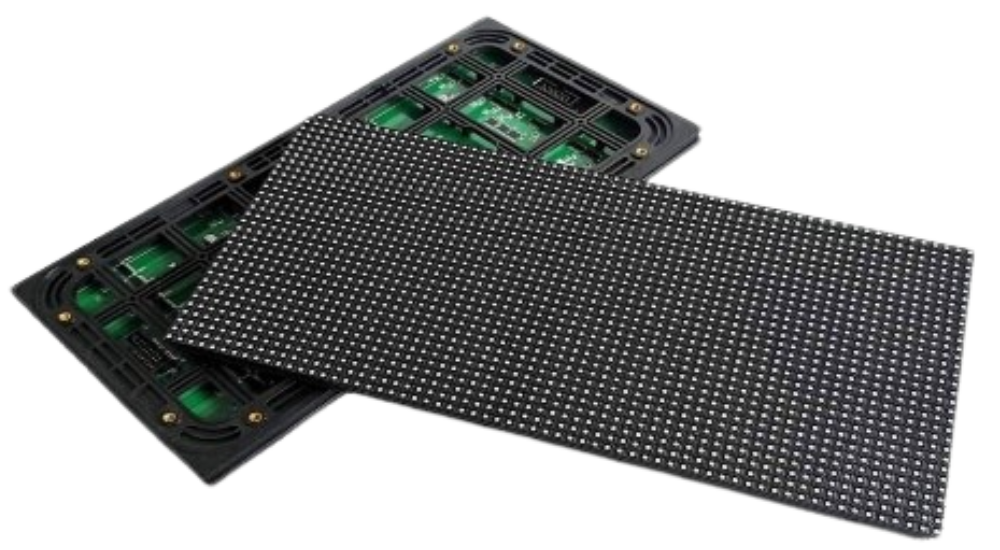

Highly Stable Integrated Circuit for Operation
The utilization of integrated circuit drivers such as MBI5124, ICN2053, ICN2038S,
and FM6153 ensures a high refresh rate and a high gray scale level, which eliminates flicker and guarantees stable operation.

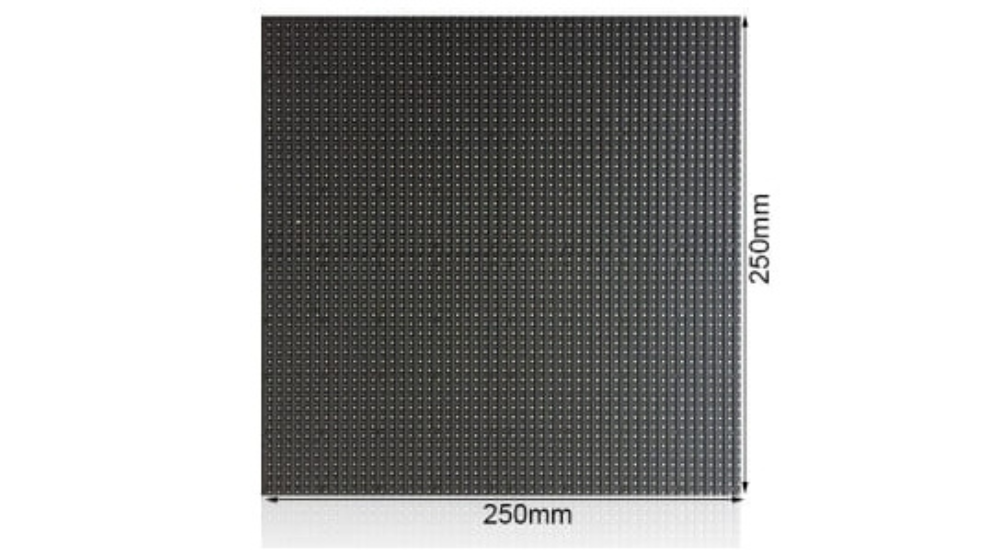

High Refresh Rate
The well-selected LED driver IC ensures that the indoor LED display modules provide a high refresh rate
exceeding 1920 Hz and even reaching 3840 Hz, eliminating module flickering issues

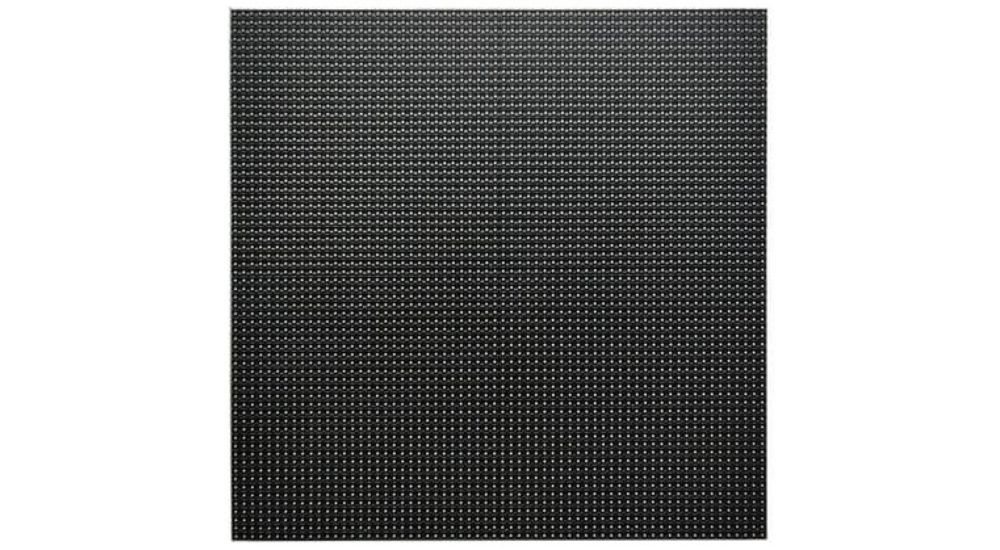

SMD Encapsulation
Utilizing advanced SMD encapsulation technology, it combines individual Red, Green,
and Blue (1R1G1B) LED chips within each pixel, delivering an accurate and vibrant color display.
Accessories

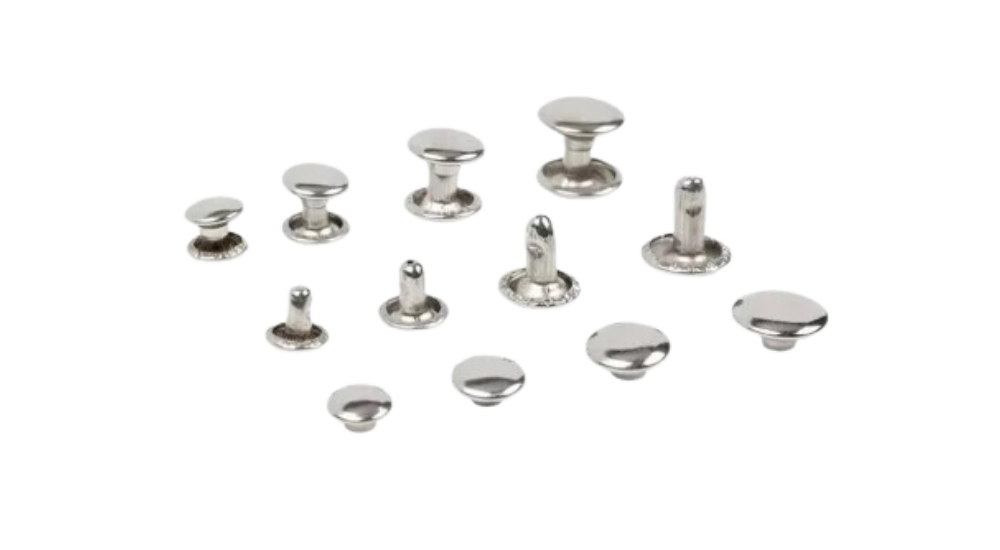

Screws
Strong and durable mounting screws such as
M3 and M4 for securing the indoor LED display module.

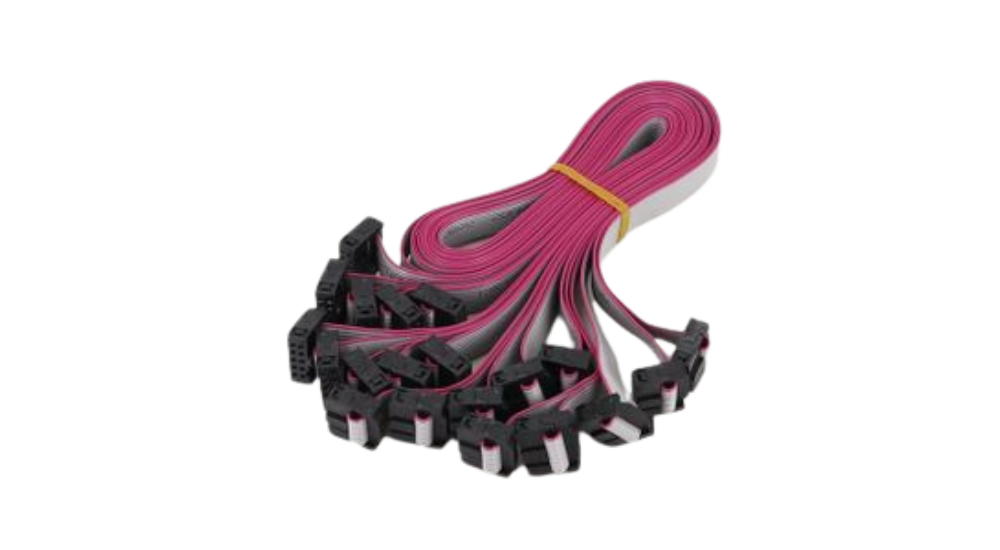

Flat Data Cable
The industry-standard 16-pin flat data cable
(signal cable) will be provided free of charge to save costs.

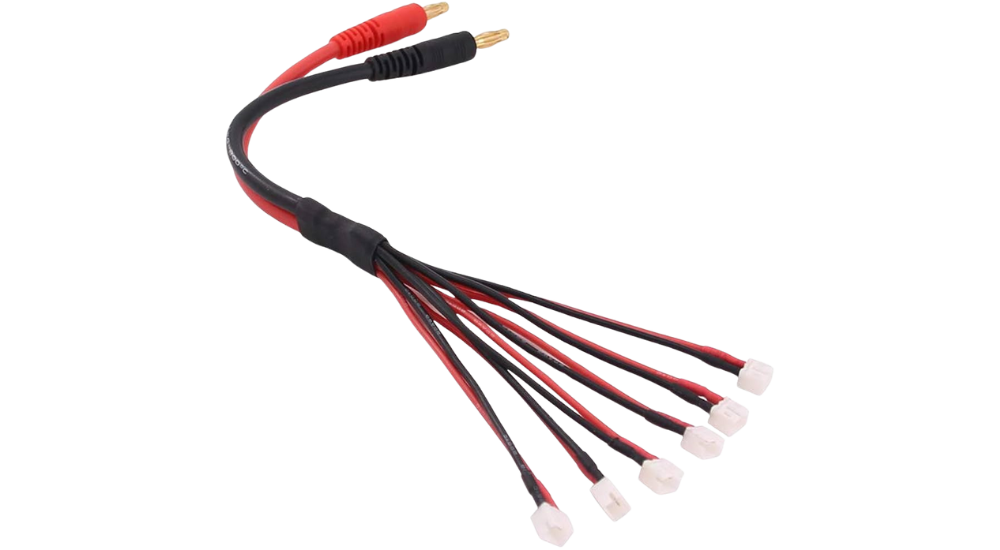

Power Cable
The standard 4-pin power cable
for connecting the module and the power supply is included.
Specification
5 mm
4 mm
3.076 mm
2.5 mm
Pixel Pitch
LSI005
LSI004
LSI003.076
LSI002.5
Model
SMD 3 in 1
SMD 3 in 1
SMD 3 in 1
SMD 3 in 1
Pixel configuration
40,000 pixels/㎡ (real pixel)
62,500 pixels/㎡ (real pixel)
106,102 pixels/㎡ (real pixel)
160,000 pixels/㎡ (real pixel)
Density
64 (W) * 32 (H)
80 (W) * 40 (H)
104 (W) * 52 (H)
128 (W) * 64 (H)
Module Resolution
320 (W) * 160 (H) * 20 (D)mm
Module Dimension
1/16 Scan
1/20 Scan
1/26 Scan
1/32 Scan
Scan mode
960（W）* 960（H）* 80(D)mm
Cabinet Dimension
192 (W) * 192 (H)
240 (W) * 240 (H)
312 (W) * 312 (H)
384 (W) * 384 (H)
Cabinet Resolution
Steel
Cabinet Material
≈22 kg
≈22 kg
≈22 kg
≈25 kg
Cabinet Weight
3（W）* 6（H） = 18 Module
Module quantity
≥ 1200 cd/㎡
≥ 1200 cd/㎡
≥ 800 cd/㎡
≥ 800 cd/㎡
Brightness
Horizontally 120° / Vertically 120°
Viewing Angle
≥ 5m
≥ 4m
≥ 3m
≥ 2.5m
Best Viewing Distance
16,384 levels for each color
Gray Scale
495 W/㎡
540 W/㎡
485 W/㎡
600 W/㎡
Max. Power Consumption
245 W/㎡
≈ 265 W/㎡
≈ 235 W/㎡
≈ 290 W/㎡
Average Power Consumption
16 bit
Colors
64 level
Brightness Adjustment level
≥1920Hz
Screen Refresh Frequency
Composite Video, S-video, DVI, HDMI, SDI, HD-SD
Input Signal
-20～+45 ºC
Working Temperature
Front IP 43 / Rear 31
Protection Grade
100,000 hours
Lifetime
1 Years
Warranty
For orders and inquiries
