Ventilation Source
Gray Scale
High Contrast
Fast Installation
Clear Viewing Angle
Continuous Operation

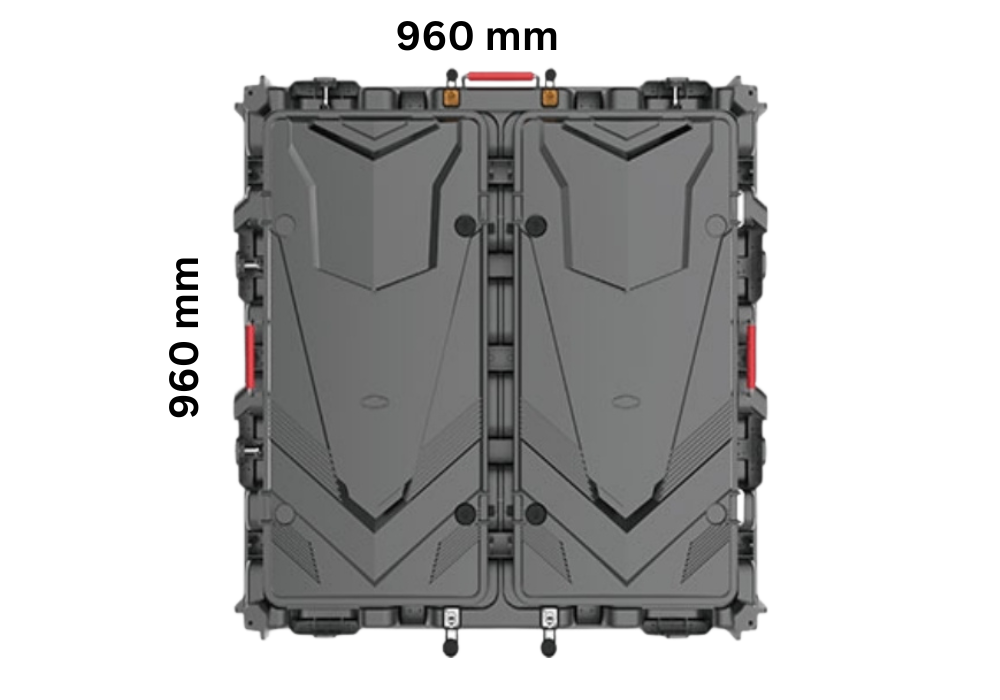

Aluminum cabinet
The cabinet is made of high-strength aluminum material, providing exceptional durability and strength, which ensures reliable performance.

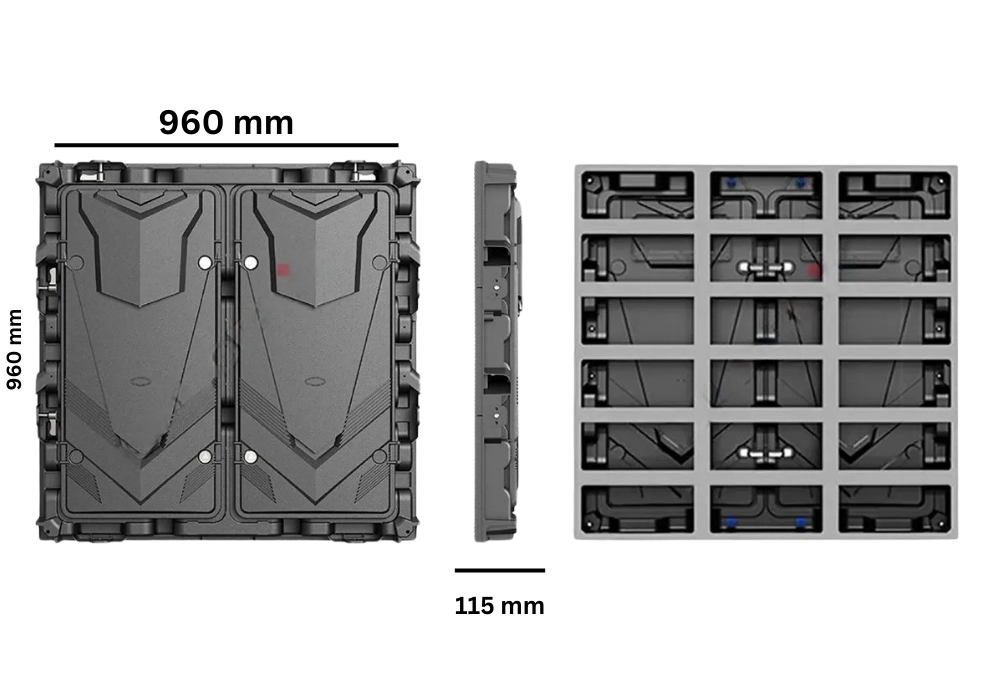

Standard Cabinet Size
The standard size for an LED display cabinet is 960 mm × 960 mm, with a thickness of only 105 mm. It is suitable for a wide range of indoor and outdoor LED modules

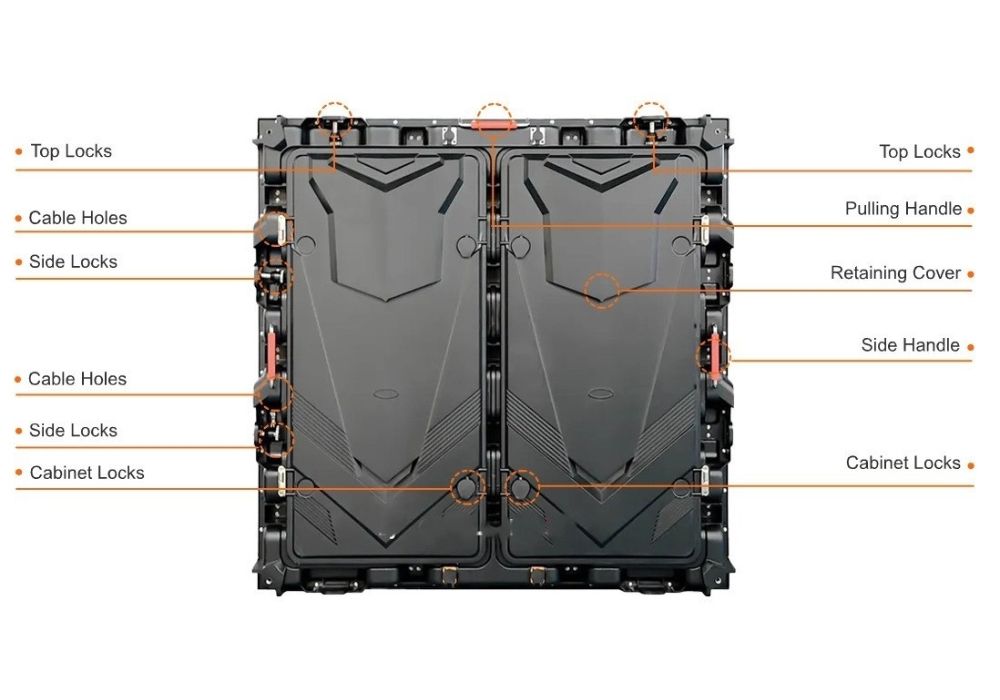

Cabinet Structure
Thanks to the innovative cabinet structure design, featuring positioned boxes, quick locks, cable openings, handles, and more, the cabinet ensures easy assembly and disassembly, thereby improving installation efficiency

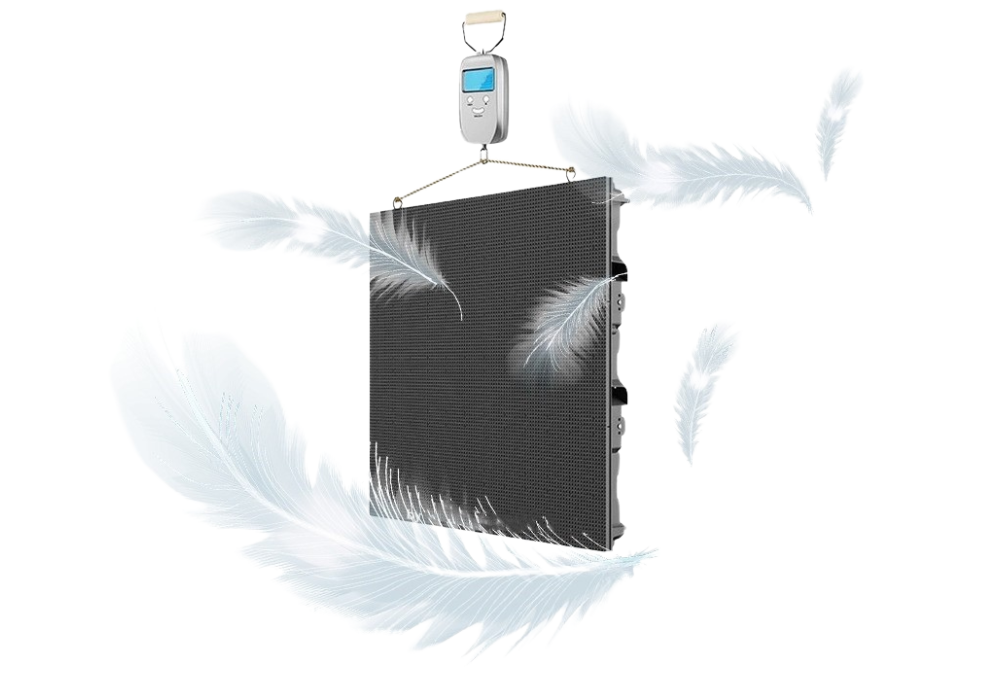

Extremely lightweight and slim
Extremely lightweight, weighing only 26 – 30 kg, which facilitates transportation and installation.
This allows for seamless deployment in various outdoor environments
Waterproof IP65
Thanks to its high IP65 protection rating, the M960R series is designed to withstand the rigors of outdoor environments. It is resistant to water, dust, and fog
Specification
Product Model
MF960
Material
Die-cast Magnesium Alloy
Dimension
960mm×960mm×105mm
Weight
26kg
Maintenance Way
Front/Rear Double Service
Flatness
≥98%
Pixel Pitch
4mm –
5.33mm –
6.67mm –
8mm –
10mm –
Pixel Resolution
80×80(P4) –
60×60(P5.33) –
48×48 (P6.67) –
40×40 (P8) –
32×32 (P10) –
Module Dimension
320×320mm
LED specification
SMD1921(P4) –
SMD1921(P5.33) –
SMD2727(P6.67) –
SMD3535 (P8) –
SMD3535 (P10) –
Scan Rate
1/16(P4) –
1/7(P5.33) –
1/6 (P6.67) –
1/5 (P8) –
1/2 (P10) –
Hor. viewing angle
140°
Vert. viewing angle
140°
Best View Distance
4m – 100m
Grey Level
≥14 bits
Brightness
5500 – 6500 cd/㎡
Brightness Adjustment
100-grade auto/manual-adjustment
Brightness Uniformity
>99%
Input Voltage (AC)
DC5V
Avg Power Consumption
P4: 270W/m² –
P5: 245/m² –
P5.33: 245/m² –
P6.67: 230/m² –
P8: 300/m² –
P10: 200/m² –
Max Power Consumption
P4: 806W/m² –
P5: 732/m² –
P5.33: 732/m² –
P6.67: 700/m² –
P8: 900/m² –
P10: 576/m² –
Operation Power Voltage
100-240V / 50-60Hz
Control System
DVI card + Full-color control card
Control Mode
Synchronous & asynchronous available
Support Input
VGA, Video, AVI, MOV, MPG, DAT, VOB etc.
Communication Options
Wire Ethernet, Fiber Ethernet, RF wireless, GPRS
Frame Frequency
>60 Hz
Refresh Frequency
1,920/3,840
Color Temperature
3500-9500 adjustable
Control Distance
Ethernet cable 100m, optical fiber 5km
Working Environment
Outdoor
Lifetime
>=100000 hours
Blind Spot Rate
<0.00001
Working Temp
(-20)-(+60) Celsius degree
Working Humidity
10%-90%
Waterproof Rating (Front/Rear)
IP66
Package Type
Carton/Wooden case/Flight case
Warranty
2 years
For orders and inquiries
