Ventilation Source
Gray Scale
High Contrast
Fast Installation
Clear Viewing Angle
Continuous Operation

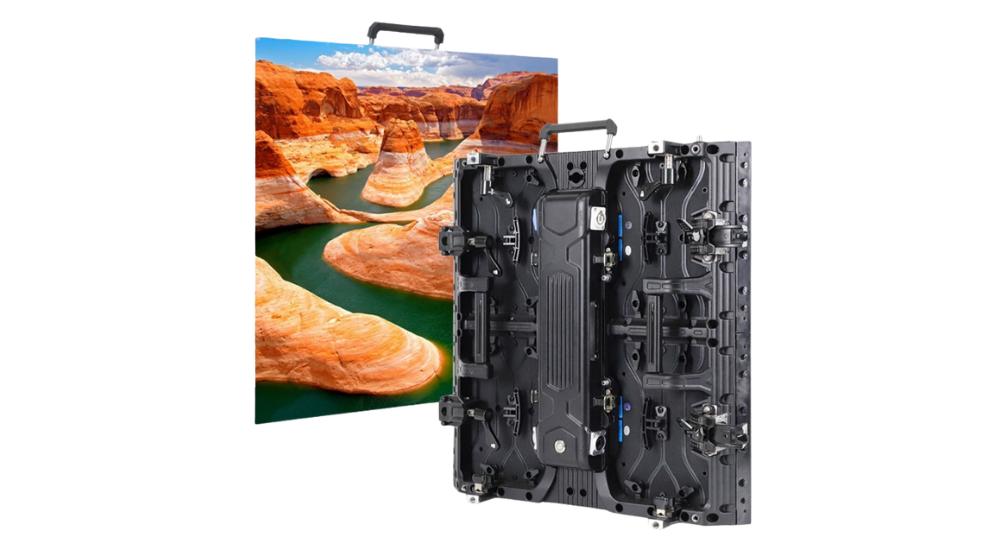

Stunning Display Effect
Thanks to SMD technology, high brightness, high refresh rate, and high contrast ratio, it delivers a vibrant display effect and realistic color performance.

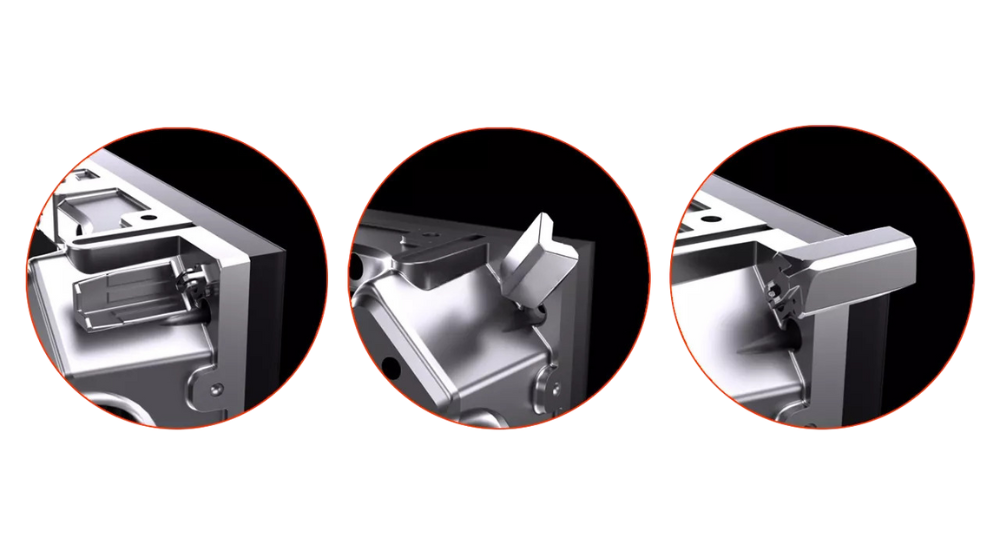

Corner Protection
Four foldable corner protectors at each corner enhance LED safety during transportation and operation.
Excellent Cabinet Structure
The user-friendly structural design, corner protectors, cabinet handle,
positioning beam, power/signal connector, control box, and quick locks make the assembly and disassembly process simple,
convenient, and extremely fast.

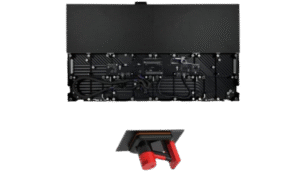

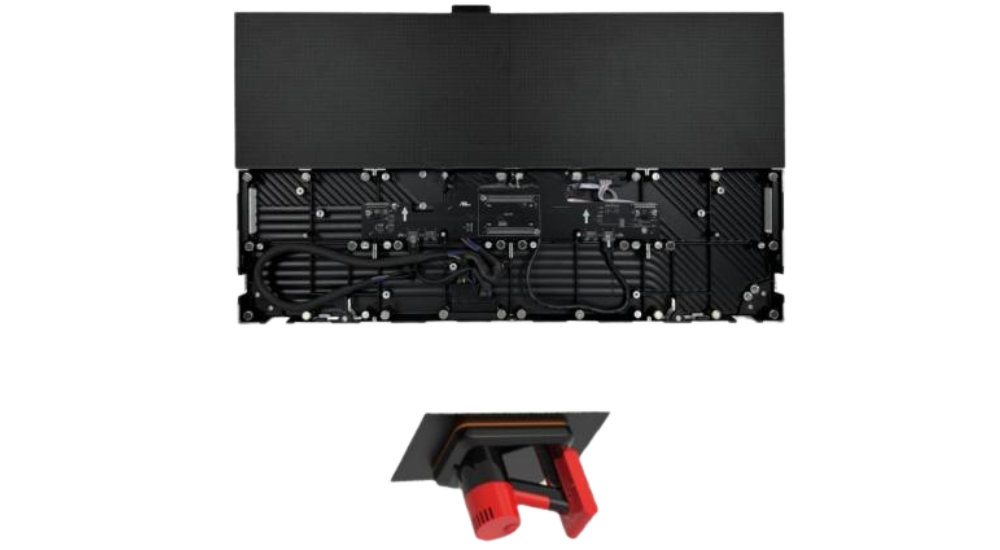

Front and Rear Maintenance
The front service design is supported by strong magnetic suction modules,
allowing for easy removal of modules in just 30 seconds

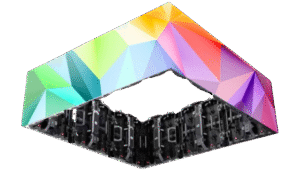

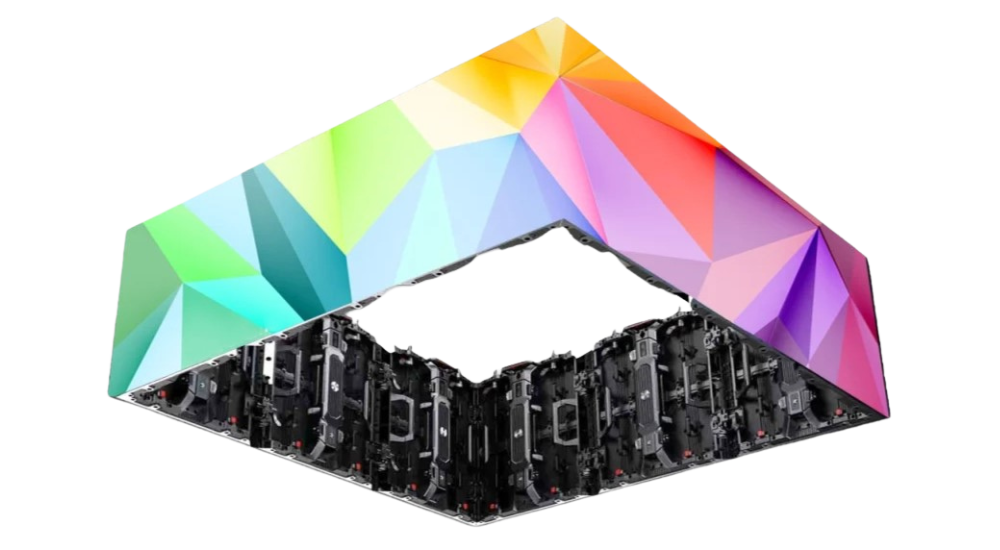

Supports Right-Angle Installation
Supports 90-degree right-angle installation for the large screen, providing an immersive visual experience

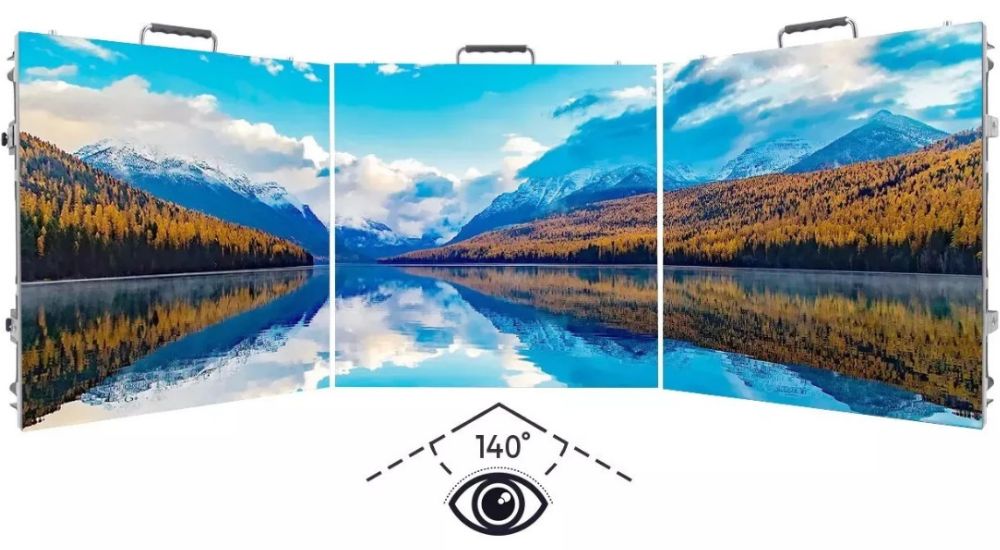

Wide Viewing Angle
The rental series offers a wide viewing angle (140° horizontal/vertical) and broad visual coverage,
ensuring optimal visibility from various viewing points.
Specification
5 mm
4 mm
3.076 mm
2.5 mm
Pixel Pitch
LSI005
LSI004
LSI003.076
LSI002.5
Model
SMD 3 in 1
SMD 3 in 1
SMD 3 in 1
SMD 3 in 1
Pixel configuration
40,000 pixels/㎡ (real pixel)
62,500 pixels/㎡ (real pixel)
106,102 pixels/㎡ (real pixel)
160,000 pixels/㎡ (real pixel)
Density
64 (W) * 32 (H)
80 (W) * 40 (H)
104 (W) * 52 (H)
128 (W) * 64 (H)
Module Resolution
320 (W) * 160 (H) * 20 (D)mm
Module Dimension
1/16 Scan
1/20 Scan
1/26 Scan
1/32 Scan
Scan mode
960（W）* 960（H）* 80(D)mm
Cabinet Dimension
192 (W) * 192 (H)
240 (W) * 240 (H)
312 (W) * 312 (H)
384 (W) * 384 (H)
Cabinet Resolution
Steel
Cabinet Material
≈22 kg
≈22 kg
≈22 kg
≈25 kg
Cabinet Weight
3（W）* 6（H） = 18 Module
Module quantity
≥ 1200 cd/㎡
≥ 1200 cd/㎡
≥ 800 cd/㎡
≥ 800 cd/㎡
Brightness
Horizontally 120° / Vertically 120°
Viewing Angle
≥ 5m
≥ 4m
≥ 3m
≥ 2.5m
Best Viewing Distance
16,384 levels for each color
Gray Scale
495 W/㎡
540 W/㎡
485 W/㎡
600 W/㎡
Max. Power Consumption
245 W/㎡
≈ 265 W/㎡
≈ 235 W/㎡
≈ 290 W/㎡
Average Power Consumption
16 bit
Colors
64 level
Brightness Adjustment level
≥1920Hz
Screen Refresh Frequency
Composite Video, S-video, DVI, HDMI, SDI, HD-SD
Input Signal
-20～+45 ºC
Working Temperature
Front IP 43 / Rear 31
Protection Grade
100,000 hours
Lifetime
1 Years
Warranty
