Ventilation source
Gray Scale
High Contrast
Fast installation
Clear Viewing Angle
Continuous Operation

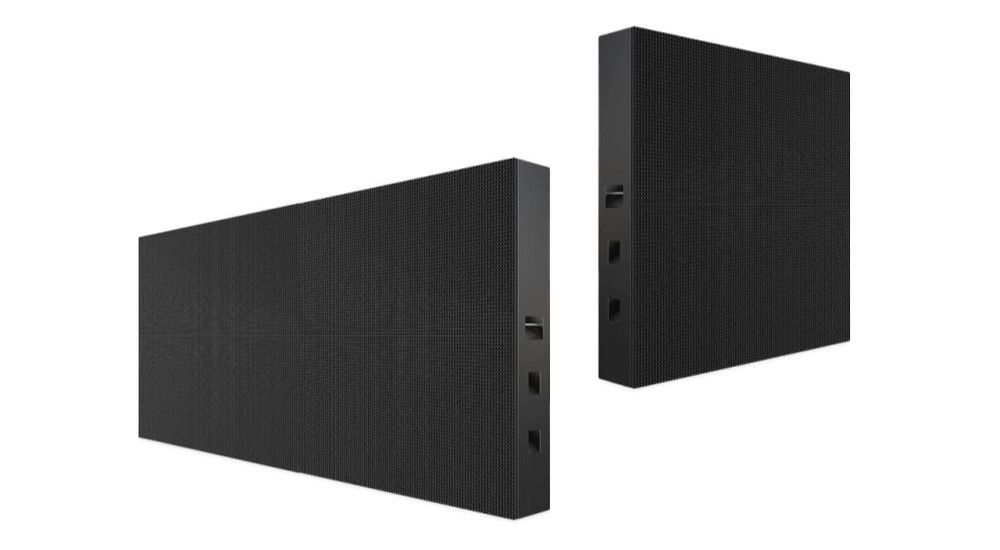

Custom Size
Supports custom sizes, allowing for the tailoring of display screens to any dimension to suit specific project requirements.
Whether it’s a large outdoor billboard or a smaller display screen, it can be configured to fit any space seamlessly.

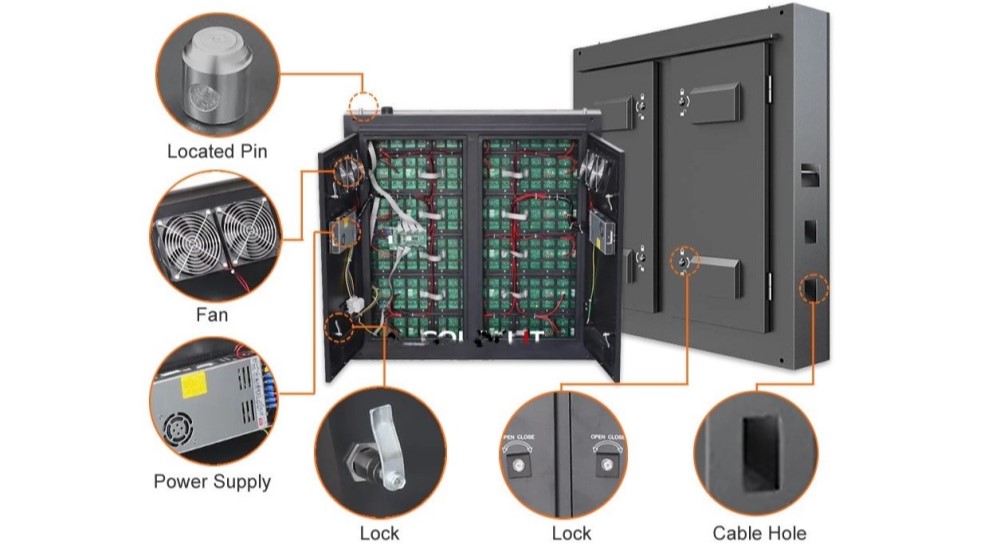

Cabin Structure
The compatible structural design makes assembly and disassembly extremely simple, convenient, and quick
Waterproof IP65
Designed with high-precision iron cabinets With an IP65 protection rating, it is designed to withstand the harshness of outdoor environments. Superior waterproof design.

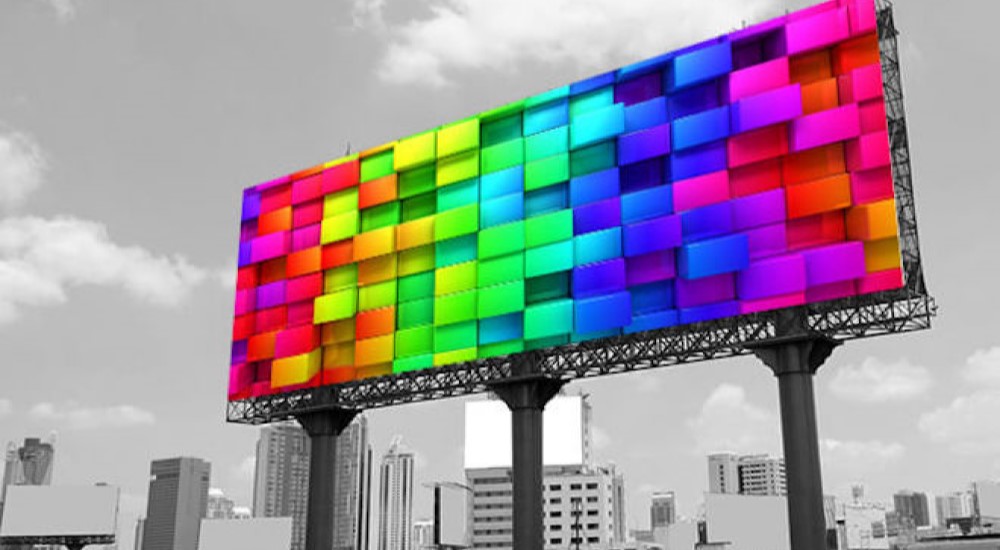

Stunning Display Effect
Featuring SMD technology, high brightness, a high refresh rate, and a high contrast ratio, our LED screens deliver a vibrant display effect and realistic color performance

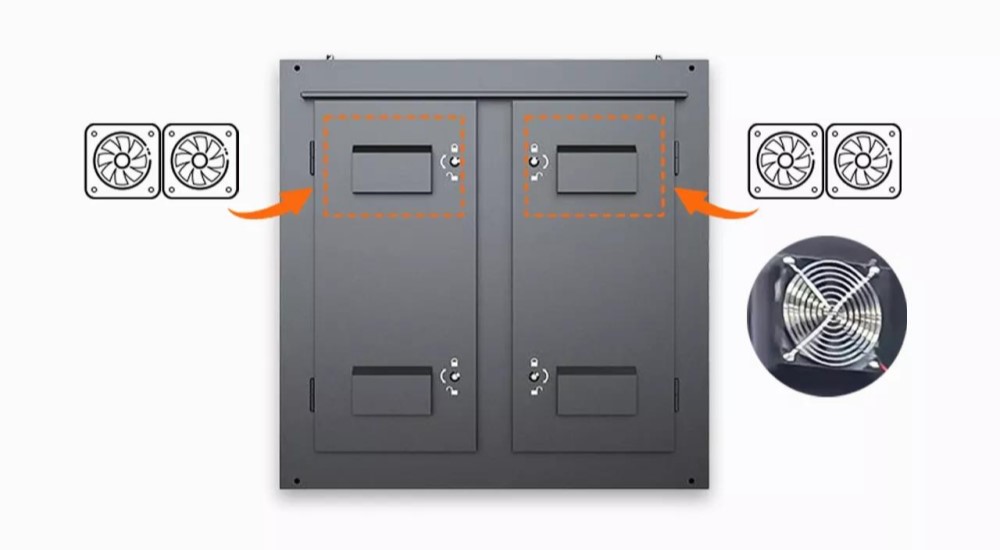

Rapid Heat Dissipation
Our LED screens feature a 4-fan design for efficient heat dissipation, maintaining optimal operating temperatures and extending lifespan
Specification
Product Model
AE960
Material
Die-cast Aluminum
Dimension
960mm×960mm×75mm
Weight
28kg
Maintenance Way
Front and Rear Dual Service
Flatness
≥98%
Pixel Pitch
6.67mm –
8mm –
10mm –
Pixel Resolution
72×48 (P6.67) –
60×40 (P8) –
48×32 (P10) –
Module Dimension
480x320mm (P6.67) –
480x320mm (P8) –
480x320mm (P10) –
LED specification
SMD2727 (P6.67) –
SMD3535 (P8) –
SMD1515 (P10) –
Scan Rate
1/6 (P6.67) –
1/5 (P8) –
1/2 (P10) –
Hor. viewing angle
140°
Vert. viewing angle
140°
Best View Distance
6m – 100m
Grey Level
≥14 bits
Brightness
5500 – 6500 cd/㎡
Brightness Adjustment
100-grade auto/manual-adjustment
Brightness Uniformity
>99%
Input Voltage (AC)
DC5V
Avg Power Consumption
100~180W/m²
Max Power Consumption
≤500W/m²
Operation Power Voltage
100-240V / 50-60Hz
Control System
DVI card + Full-color control card
Control Mode
Synchronous & asynchronous available
Support Input
VGA, Video, AVI, MOV, MPG, DAT, VOB etc.
Communication Options
Wire Ethernet, Fiber Ethernet, RF wireless, GPRS
Frame Frequency
>60 Hz
Refresh Frequency
≥3,840
Color Temperature
3500-9500 adjustable
Control Distance
Ethernet cable 100m, optical fiber 5km
Working Environment
Outdoor
Lifetime
>=100000 hours
Blind Spot Rate
<0.00001
Working Temp
(-20)-(+60) Celsius degree
Working Humidity
10%-90%
Waterproof Rating (Front/Rear)
IP66
Package Type
Carton/Wooden case/Flight case
Warranty
2 years
For orders and inquiries
Related Blogs

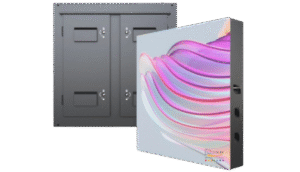

960×960 outdoor iron led screen strong and durable
