Ventilation Source
Gray Scale
High Contrast
Fast Installation
Clear Viewing Angle
Continuous Operation
Better Visual Impact

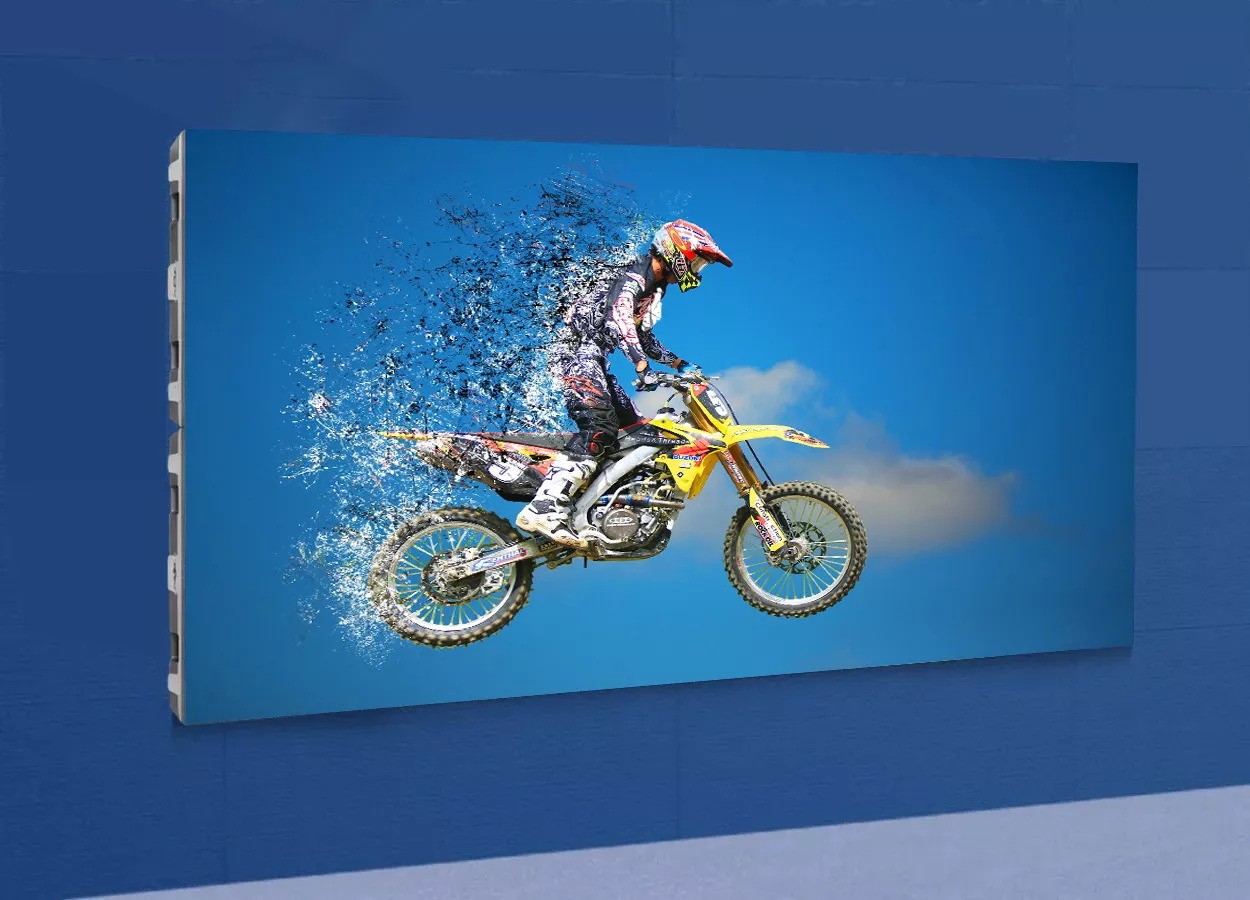

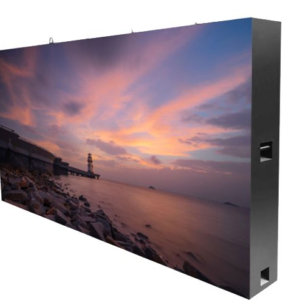

The indoor fine-pixel LED screen boasts an ultra-thin design with a thickness of only 44mm,
embodying the pinnacle of lightweight and elegant aesthetics coupled with unparalleled ease of installation.
The design features innovative quick locks and magnetic modules,
which significantly simplify assembly and maintenance processes
Pixel Pitch
Thanks to its support for diverse pixel pitches, from the ultra-detailed P1.25 to the wider P4mm,
the small pixel pitch LED screen offers creative freedom for designers and content creators,
allowing them to craft visuals that not only capture attention but also leave a lasting impression.
Universal Module Size: The modules measure a standard 320 × 160 mm
for consistent sizing and easy customization.
Flexible Cabinet Dimensions: Available in sizes 640 × 480 × 44 mm, 960 × 480 mm × 44 mm, 320 × 480 mm × 44 mm,
320 × 640 mm × 44 mm, and 640 × 640 mm × 44 mm, to suit various venue sizes

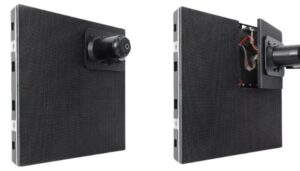

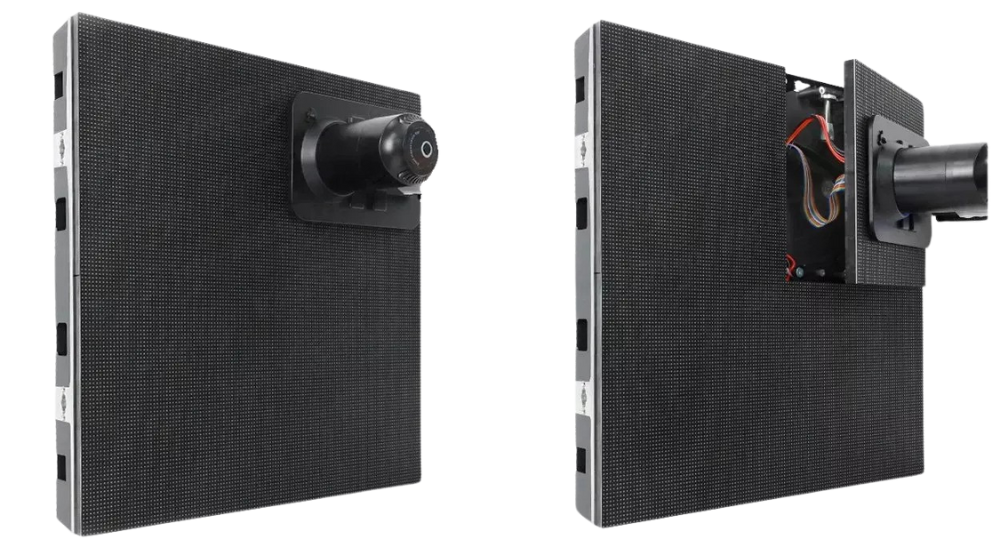

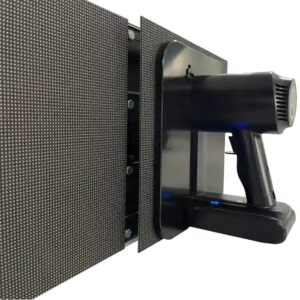

Designed for Front Maintenance
Designed for front maintenance for easy replacement using the magnetic suction module. Modules can be taken out in a few seconds

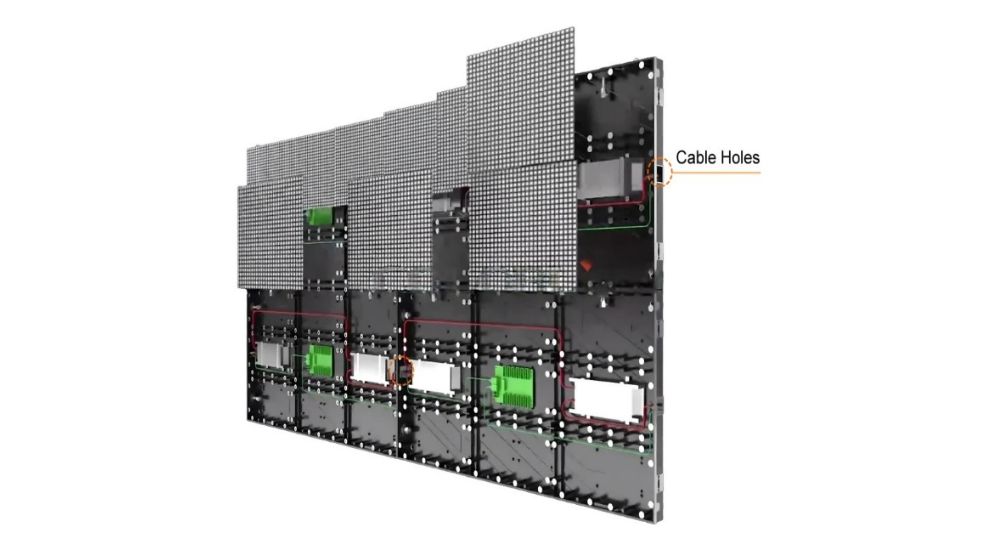

Internal Cable Routing
Each side of the enclosure, including the left, right, top, and bottom edges,
is thoughtfully equipped with cable openings. This allows for streamlined and organized cable connections, ensuring a neat and efficient setup
High definition, providing an ideal visual experience
Thanks to its 16:9 cabinet ratio,
this custom-sized LED screen is flexible in installation and compatible with all mainstream video formats,
making it easy to create FHD, 2K, 4K, 8K, and 16K video walls.
Specification
5 mm
4 mm
3.076 mm
2.5 mm
Pixel Pitch
LSI005
LSI004
LSI003.076
LSI002.5
Model
SMD 3 in 1
SMD 3 in 1
SMD 3 in 1
SMD 3 in 1
Pixel configuration
40,000 pixels/㎡ (real pixel)
62,500 pixels/㎡ (real pixel)
106,102 pixels/㎡ (real pixel)
160,000 pixels/㎡ (real pixel)
Density
64 (W) * 32 (H)
80 (W) * 40 (H)
104 (W) * 52 (H)
128 (W) * 64 (H)
Module Resolution
320 (W) * 160 (H) * 20 (D)mm
Module Dimension
1/16 Scan
1/20 Scan
1/26 Scan
1/32 Scan
Scan mode
960（W）* 960（H）* 80(D)mm
Cabinet Dimension
192 (W) * 192 (H)
240 (W) * 240 (H)
312 (W) * 312 (H)
384 (W) * 384 (H)
Cabinet Resolution
Steel
Cabinet Material
≈22 kg
≈22 kg
≈22 kg
≈25 kg
Cabinet Weight
3（W）* 6（H） = 18 Module
Module quantity
≥ 1200 cd/㎡
≥ 1200 cd/㎡
≥ 800 cd/㎡
≥ 800 cd/㎡
Brightness
Horizontally 120° / Vertically 120°
Viewing Angle
≥ 5m
≥ 4m
≥ 3m
≥ 2.5m
Best Viewing Distance
16,384 levels for each color
Gray Scale
495 W/㎡
540 W/㎡
485 W/㎡
600 W/㎡
Max. Power Consumption
245 W/㎡
≈ 265 W/㎡
≈ 235 W/㎡
≈ 290 W/㎡
Average Power Consumption
16 bit
Colors
64 level
Brightness Adjustment level
≥1920Hz
Screen Refresh Frequency
Composite Video, S-video, DVI, HDMI, SDI, HD-SD
Input Signal
-20～+45 ºC
Working Temperature
Front IP 43 / Rear 31
Protection Grade
100,000 hours
Lifetime
1 Years
Warranty
