Ventilation Source
Gray Scale
High Contrast
Fast Installation
Clear Viewing Angle
Continuous Operation

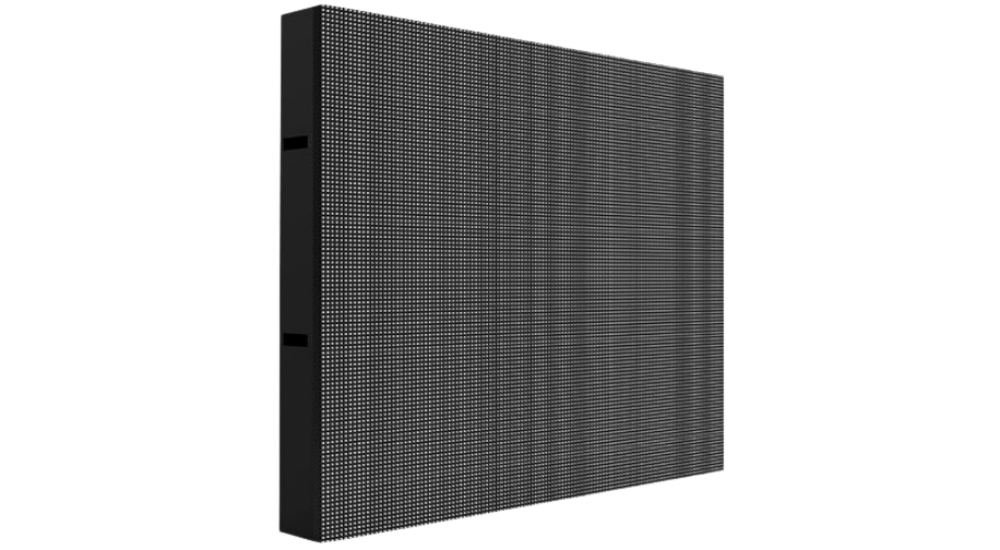

High-Definition LED Screen for Commercial Purposes
Elevate your visual experience with our indoor fixed-installation screen,
delivering stunning image quality specifically tailored for indoor commercial applications.
It provides vibrant and ultra-clear visuals that capture attention and spark interest

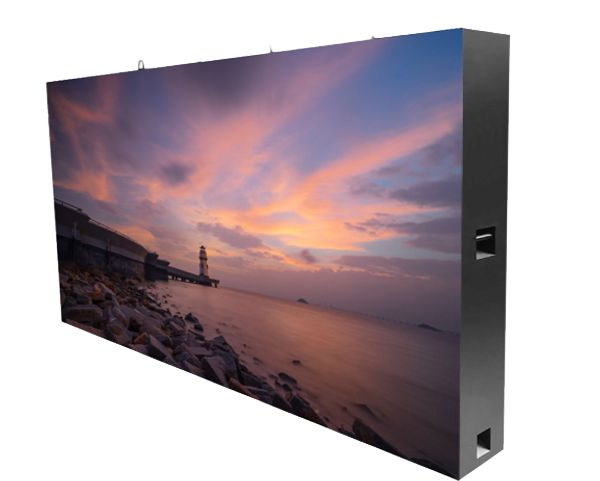

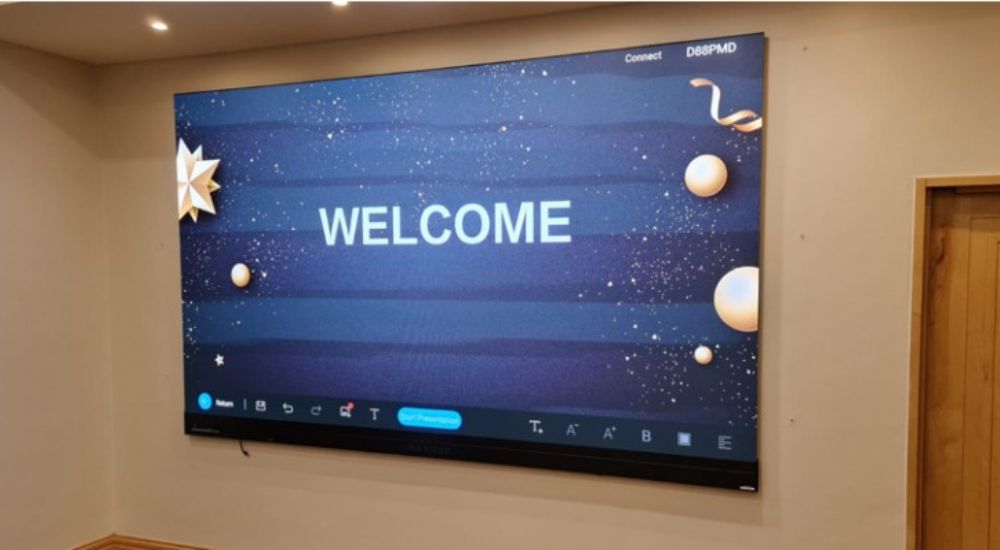

Golden Ratio LED Screen
Featuring a sleek die-cast aluminum design and a 16:9 aspect ratio,
this LED screen ensures easy setup and offers standard 2K and 4K resolutions.

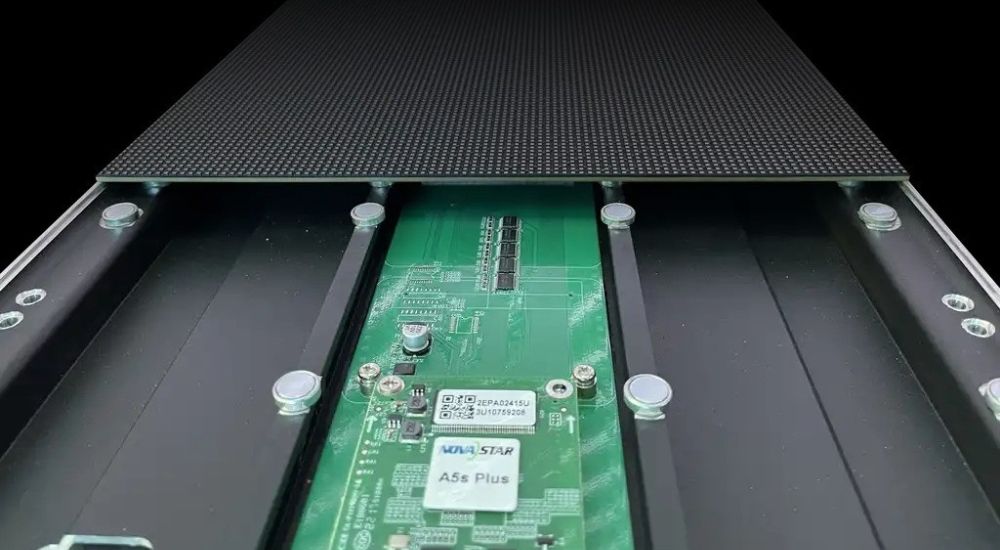

Magnetic Modules
Magnetic modules support front maintenance.
Additionally, the plug-and-play design for LED module data and power input eliminates the need for extra DC power cables,
making installation easy and saving you time and effort.

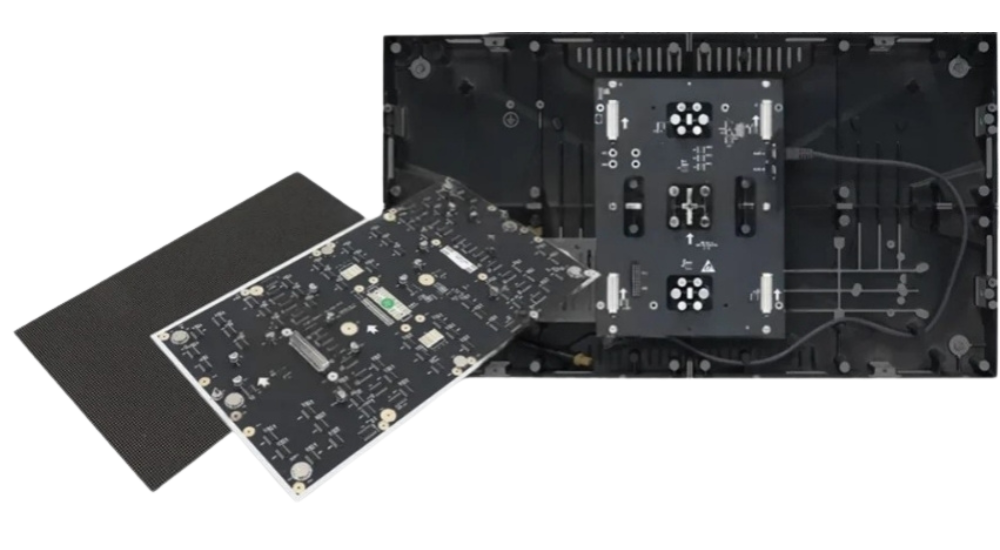

Wireless Installation
The cable-free cabinet design, along with the innovative HUB board design
(which integrates the LED power board and the LED receiving card),
allows for quick maintenance within seconds.

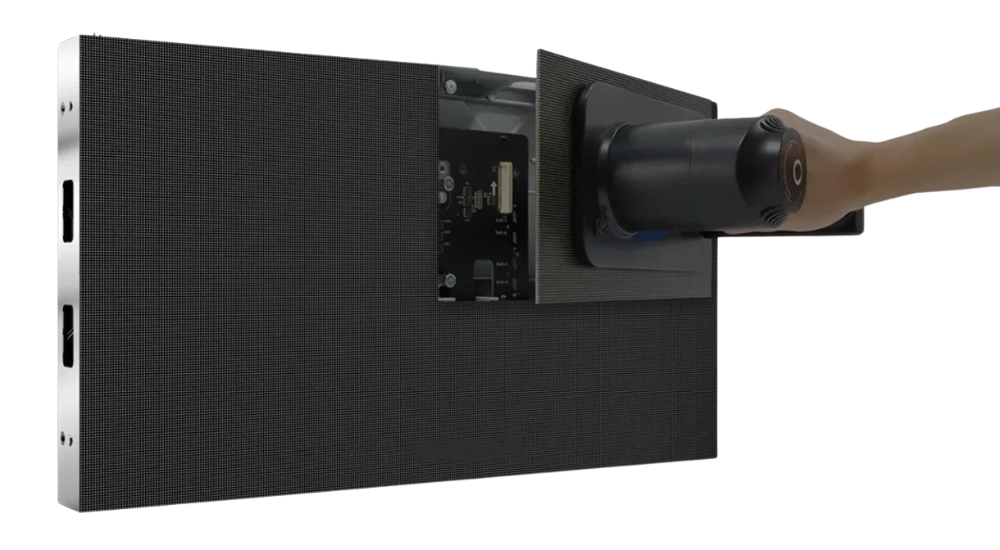

Full Front Maintenance Support
Thanks to the front maintenance capability of the LED module,
you can easily access and replace components (LED modules, LED power supply, cables, HUB card, etc.),
ensuring minimal downtime and quick solutions.

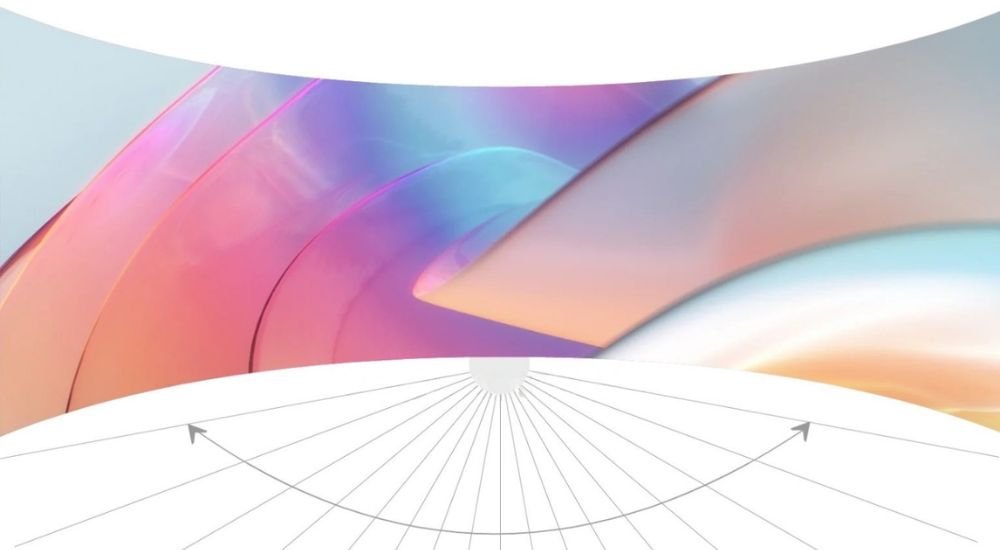

Large Viewing Angle Display
The LED screen boasts a wide 160-degree viewing angle (vertical/horizontal). No matter where you’re seated,
enjoy the full spectrum of stunning visuals.
It conveys the complete picture to every corner of the room.
Specification
5 mm
4 mm
3.076 mm
2.5 mm
Pixel Pitch
LSI005
LSI004
LSI003.076
LSI002.5
Model
SMD 3 in 1
SMD 3 in 1
SMD 3 in 1
SMD 3 in 1
Pixel configuration
40,000 pixels/㎡ (real pixel)
62,500 pixels/㎡ (real pixel)
106,102 pixels/㎡ (real pixel)
160,000 pixels/㎡ (real pixel)
Density
64 (W) * 32 (H)
80 (W) * 40 (H)
104 (W) * 52 (H)
128 (W) * 64 (H)
Module Resolution
320 (W) * 160 (H) * 20 (D)mm
Module Dimension
1/16 Scan
1/20 Scan
1/26 Scan
1/32 Scan
Scan mode
960（W）* 960（H）* 80(D)mm
Cabinet Dimension
192 (W) * 192 (H)
240 (W) * 240 (H)
312 (W) * 312 (H)
384 (W) * 384 (H)
Cabinet Resolution
Steel
Cabinet Material
≈22 kg
≈22 kg
≈22 kg
≈25 kg
Cabinet Weight
3（W）* 6（H） = 18 Module
Module quantity
≥ 1200 cd/㎡
≥ 1200 cd/㎡
≥ 800 cd/㎡
≥ 800 cd/㎡
Brightness
Horizontally 120° / Vertically 120°
Viewing Angle
≥ 5m
≥ 4m
≥ 3m
≥ 2.5m
Best Viewing Distance
16,384 levels for each color
Gray Scale
495 W/㎡
540 W/㎡
485 W/㎡
600 W/㎡
Max. Power Consumption
245 W/㎡
≈ 265 W/㎡
≈ 235 W/㎡
≈ 290 W/㎡
Average Power Consumption
16 bit
Colors
64 level
Brightness Adjustment level
≥1920Hz
Screen Refresh Frequency
Composite Video, S-video, DVI, HDMI, SDI, HD-SD
Input Signal
-20～+45 ºC
Working Temperature
Front IP 43 / Rear 31
Protection Grade
100,000 hours
Lifetime
1 Years
Warranty
For orders and inquiries
Related Blogs

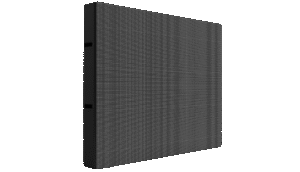

960×960 fixed internal display when performance meets performance
In the constantly advancing world of digital display, screens are no longer just tools for presenting information—they have become essential design elements that contribute to creating engaging atmospheres and delivering…

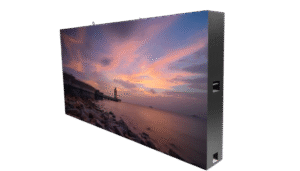

960×960 Indoor Fixed screen ideal solution for display
